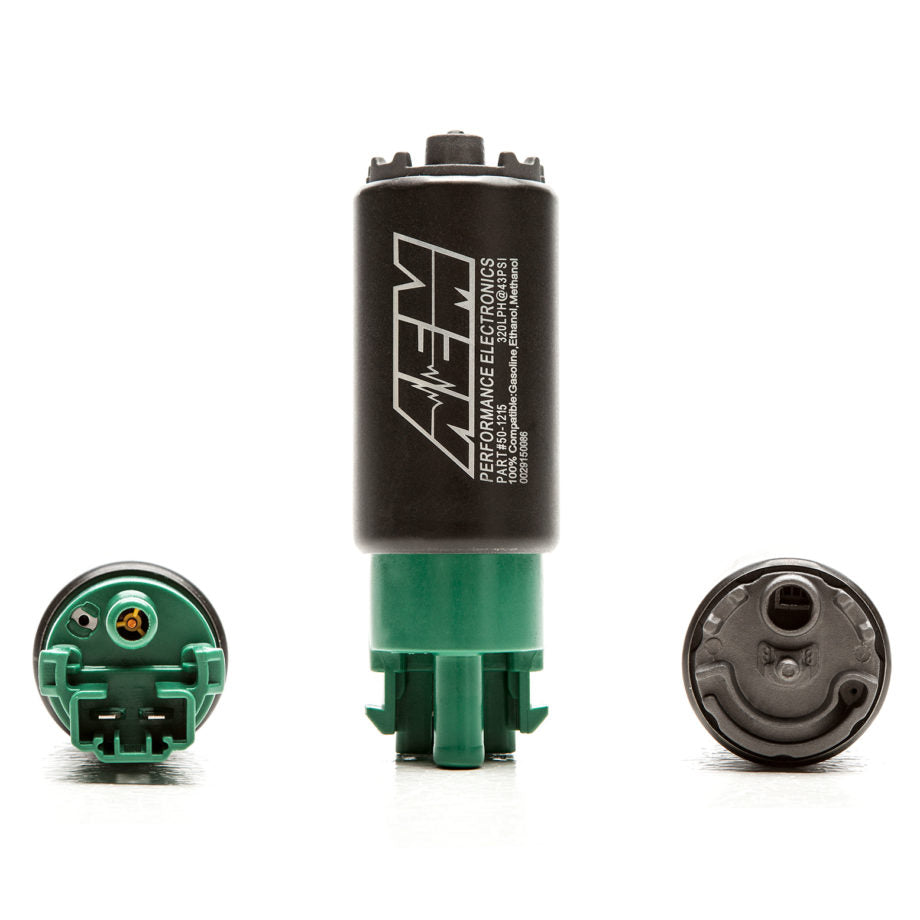

AEM (R35 GT-R) 340LPH 65mm Fuel Pump - E85/Ethanol Compatible 50-1215
(Two are needed for the R35 GT-R Fuel Pump) The AEM GT-R Fuel Pump Kit is the perfect fuel pump solution for full bolt on GT-R's utilizing the factory turbochargers. Ethanol (E85) compatible, the AEM GT-R R35 Dual Fuel Pump Upgrade Kit includes two fuel pumps, which are a direct replacement of the GT-R's factory fuel pumps.
The AEM 340LPH E85-Compatible High Flow In-Tank Fuel Pump is designed for in-tank mounting on high-performance naturally aspirated and forced induction vehicles. It features a compact 39mm diameter that fits most applications and an offset inlet design that eases installation.
The 340LPH E85-Compatible High Flow In-Tank fuel pump includes a wiring harness, pre filter, and O-rings. Every AEM 340LPH E85-Compatible Fuel Pump is tested to flow 340 lph at 40 PSI before it is packaged for sale.
AEM High Flow In-Tank Fuel Pump Features:
- Tested and compatible with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline
- Designed for high output naturally aspirated and forced induction EFI vehicles
- In-Tank design
- Each pump is tested to flow 340 lph @ 40 PSI
- Compact body (39mm diameter x 65mm length)
- For gasoline vehicles *E85 Compatible*

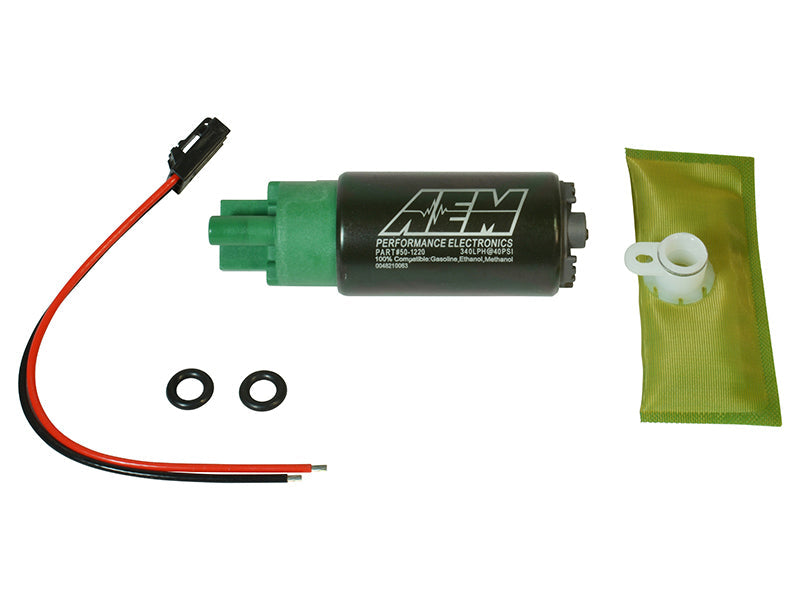

- Includes Fuel Pump, installation instructions, wiring harness, pre filter, and O-rings (use of stock isolator sleeve is recommended)

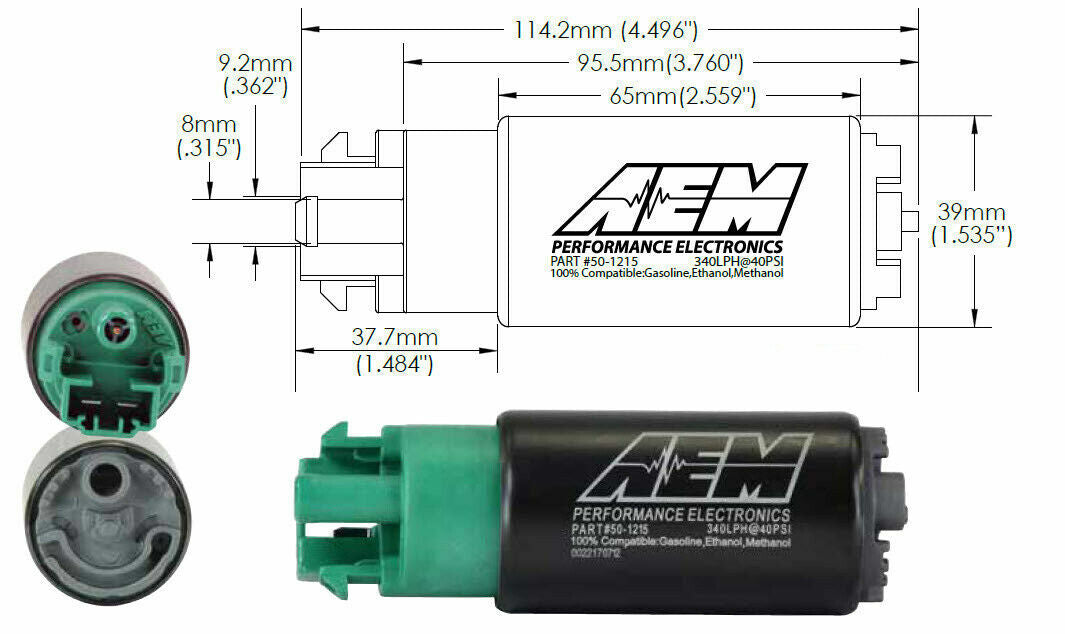

TECHNICAL SPECS:
- Weight: 10.4oz (294grams)
- Outside Diameter: 39mm OD
- Length: 65mm
- External Materials: Black-plated steel with laser etching, green/gray end caps
- Inlet Fitting: 7.7mm ID, 11.0mm OD. Offset Inline
- Outlet Fitting: 8 mm hose clamp. Offset
- PRV Activation: 80 PSI
- Impeller Design: Single Scroll Ceramic Turbine
- Connector Terminal: 6 mm Spade (pos/neg)
- Min Voltage Input: 6 volts
- Max Voltage Input: 18 volts
- Current Draw (40 psi): 12 amps (13.5v)
- Current Draw (80 psi): 15 amps (13.5v)
- Fuse: 20 amps (13.5v)
* Power rating given at 43 PSI, 13.5v at the pump terminal with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.
